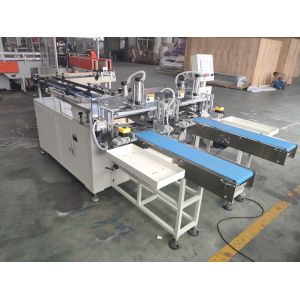

XY-GU-26B Semi automatic two heads facial tissue bundle packing
machine
This machine is used for soft-drawing multi-piece middle bag
packing, convey automatically by conveyer belt. This machine
ssemble paper-feeding, bagging, sealing and cuting in one body.
Adopt PLC, liquid crystal text display parameter, easy to set,
temperature controll accuracy. Package sealing is good trimming. It
is a semi-automatic machine that only need the worker to bagging.
| Model | XY-GU-26B |
| Packing facial tissue/napkin quantity | 3,4,5 pcs/bundling bag (1 lane) 6,8,10 pcs/bundling bag(2 lane) |
| Speed | 12-16 bundling bag/min |
| Power supply | 1.2Kw 220 V,50 HZ |
| Air supply | 0.6 MPA(Supplied by user) |
| Single facial/napkin size | (L(130-200)*W(80-95)*H(70-90)mm |
| Bundling size | 1 lane:L(200-400)*W(130-200)*H(80-95) mm 2 lane:L(200-400)*W(230-320)*H(80-95) mm |
| Machine size | L5300*W1800*H1350 mm |
VIDEO LINK : https://youtu.be/iK_LTbd3d9M
Previous process production equipment:
XY-BT-298 Full-automatic Soft Facial TissueNapkin Paper Packing
Machine
Application: This machine is mainly used for Facial Tissue or Napkin Paper Three Dimensional Packing.
Main performance and structure features:
1. Adopt packing method by wrapping, hemming and sealing with
compact structure and high product appeal.
2. Adopt the controlling system of step-less frequency conversion,
touching screen and PLC, clear display and easy maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic
production line, saving laboring cost.
4. Stepless-speed regulation with double transducer, automatically
adjusting packing film length.
5. High autoimmunization, high specialization, high efficiency and
but less trouble.
6. Different sizes can be handled easily thanks to a fast and
simple changeover facility.
Model & Main technical parameters:
| Model | XY-BT-298 |
| Outline Dimension (mm) | 3560*5885*1925 |
| Speed (bags / min) | 50-70 |
| Packing size (mm)After folding size | 100-230*90-150*40-100 |
| Machine's Weight (KG) | 3000 |
| Motor Consumption (KW) | 3.66 |
| Heating Consumption (KW) | 3.6 |
| Power | 380V 50Hz |
| Power Consumption (KW) | 7.26 |
| Packing film | CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides |
VIDEO LINK : https://youtu.be/sNFBymIlG2s
-------------------------------------------------------------------------------------------------------------------------------------------------
WORKSHOP
PACKING AND DELIVERY
| SAY USD DOLLAR ONLY. (FOB Xiamen Price USD) | |
Packing: In standard export packing wooden pallet. Terms of payment: 100% TT(Pay 30% deposit in advance ,the 70% balance is paid before shipping). Delivery time: About 90days. Guarantee: One year from date of Bill of Lading. Bank Details: BENEFICIAY:Fujian Xinyun Construction Development Co., Ltd OUR BANK AND ACCOUNT: BANK: China Construction Bank Fujian Branch ADDRESS: NO.142 Guping Road Fuzhou Fujian China SWIFT CODE: PCBCCNBJFJX ACCOUNT: 35050165690709201872 |
| |
